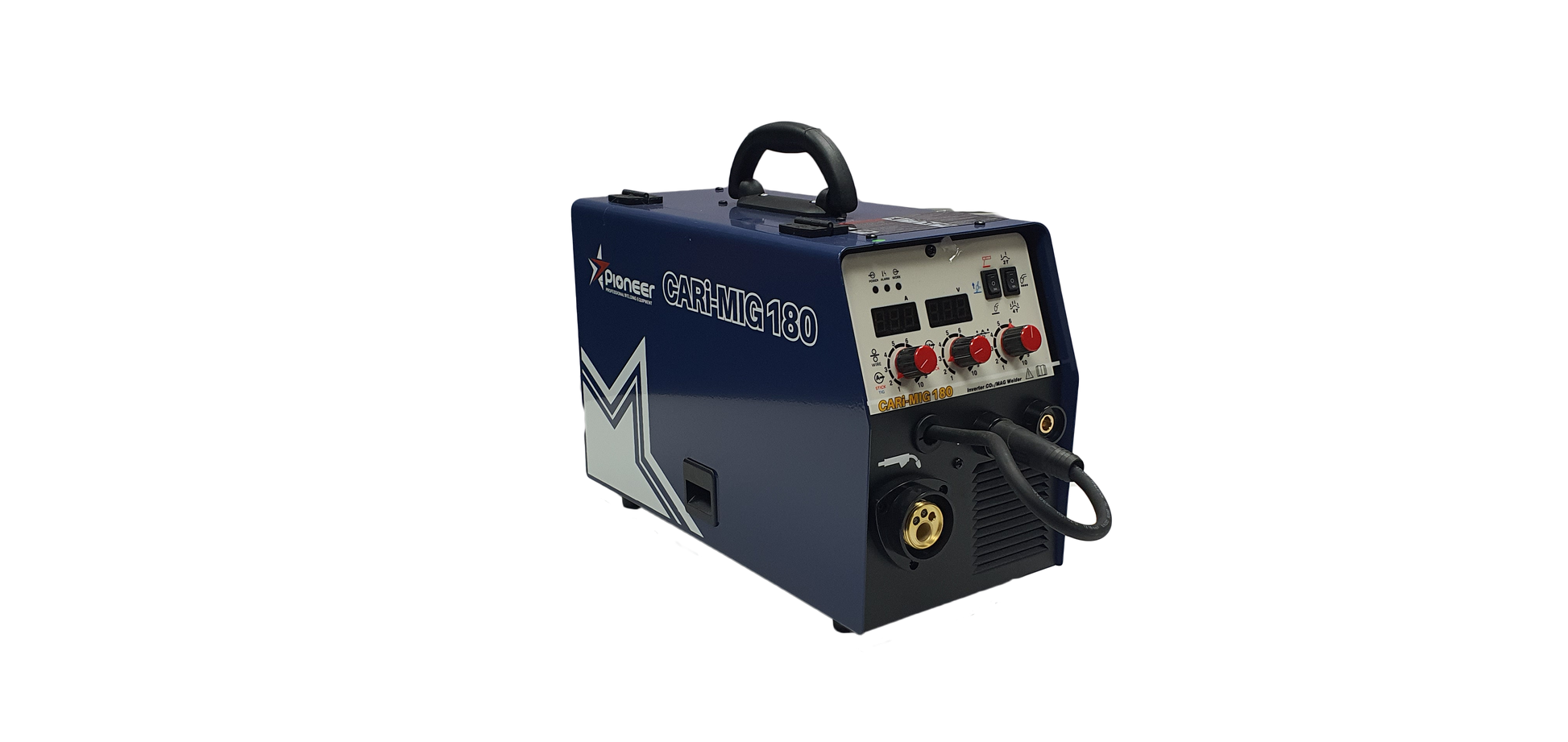

PIONEER CARi MIG 180

• Multi process MIG welder
• MMA/MIG Function
• Power Indicator
• Digital display
• 2T / 4T
• Stepless wire feed setting
• Removable MB 25 MIG Torch
• Digital Volts & Amps Display
• Available for 5kg spool

ACCESSORIES:
• 4m MB 25 MIG TORCH with 0.8mm
contact tip;
• 3m Grounding cable 25mm2
with
• Earth clamp 10-25 Dinse connector;
• 3mΦ8mm gase hose with connector
and 9-16 hose clamp;
• Small kits: wrench, 9-16 hose clamp,
0.8,1.0mm contact tip 1pc each;
CO2
regulator

MIG 180 (220V) ( with MB25 torch, flow meter )
Inverted Mig Welder, Power Indicator , Digital Display
Volts / Amps display
Manual Wire Feeding Removable MB 25 torch
Available For 5kg spool
Weight 10,5kg
Wire - 0.6 - 1.0 mm

Pioneer Model: CARIMIG180

Power Supply (V/HZ): 1-ph-220V 50/60Hz

Input Current (A): 32A

Output Current (A): MIG50-250A; MMA30-200A

OCV (V): 55V

Rated Output (% at A):  60% at 250A

Electrode/Wire diameter (mm): 2.0-5.0mm
                                                      0.8-1.0mm
