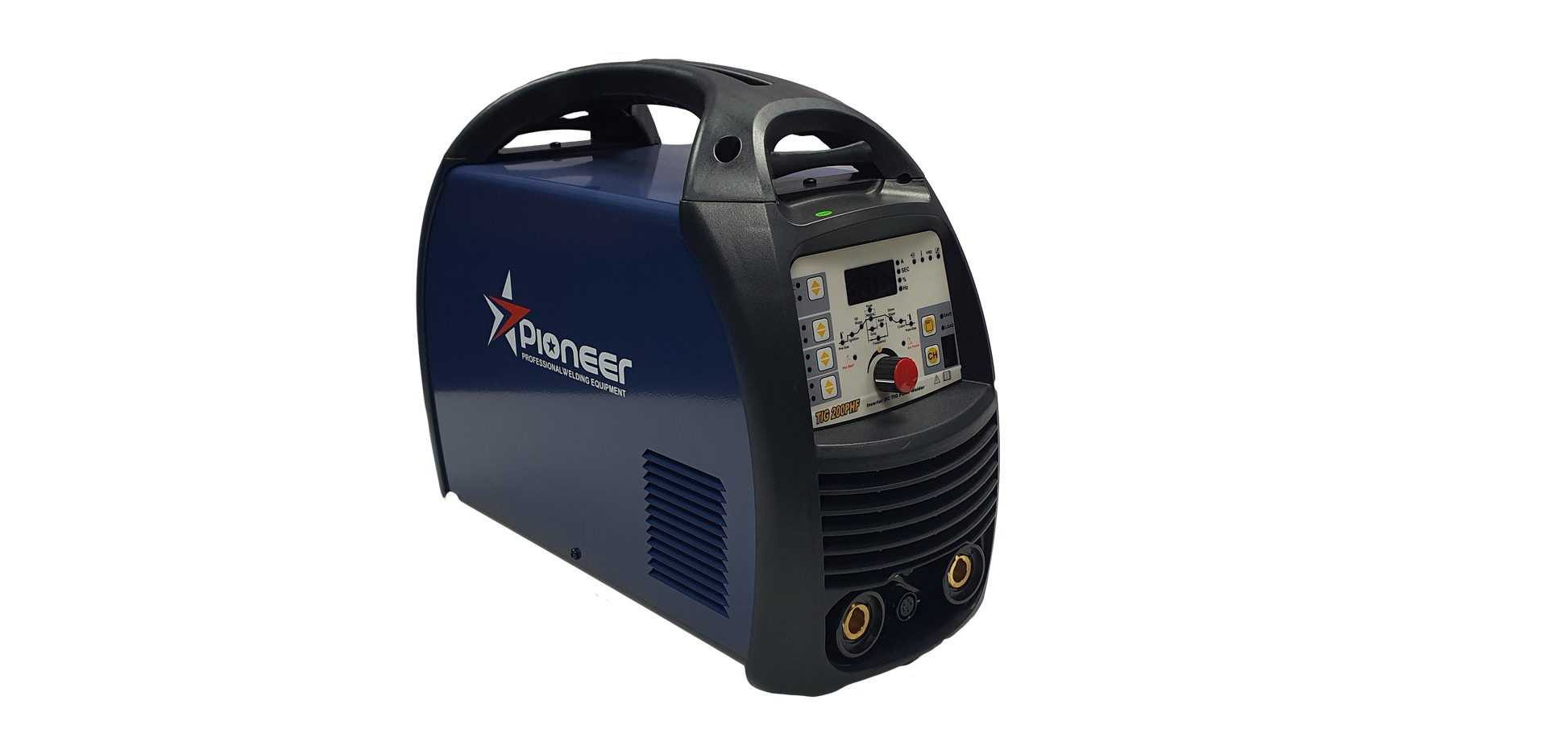

PIONEER TIG 200PHF

• Professional IGBT inverter
TIG pulse machine
• HF TIG
• ARC Force
• Anti-Sticking
• Hot Start
• Digital Display
• Stepless setting
• Pulse Frequency adjustment
• Pulse Width adjustment
• Pulse Current Adjustment

ACCESSORIES:
• 4m WP-26 TIG TORCH with 2pin
plug and 35-70 quick connector;
• 3m 16mm2
Earth cable with 35-70
quick connector and 300A Earth
clamp;
• Φ8 Gas hose with 9-16 clamp;
Small accessories

Pioneer Model: TIG200

Power Supply (V/HZ): 1-ph-220V 50/60Hz

Input Current (A): 38A

Output Current (A):  MMA: 20-200
                                   DCTIG: 5-200

OCV (V): 68V

Rated Output (% at A):  60% @ 200A

Electrode/Wire diameter (mm): 2.0-5.0mm
